Challenges and Objectives
To transition rudimentary metal castings to precision-engineered refining plates, the paper science community has developed comprehensive mathematical models to quantify the forces exerted upon the fibrous suspension.

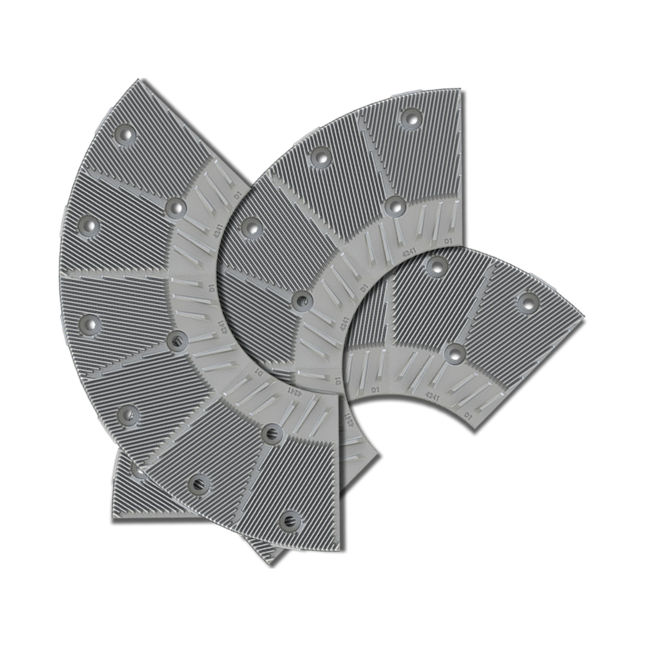

These theoretical frameworks are directly embedded into the geometric design of the Prometals' refiner plates, establishing the precise bar width, groove depth, and angular configuration required for specific pulp grades.
Pulp refining demands a tight balance between fiber development and specific energy. Mills aim to stabilize CSF, avoid over‑refining, and extend wear life while mitigating sand/contaminant damage.
- Fiber development vs. energy: achieve target bond area with the lowest kWh/t.
- CSF control and stability: reduce variability across shifts and furnish changes.
- Wear management: predictable plate life and consistent gap over service.
- Contamination tolerance: geometries and alloys that resist sand and tramp metals.
Core Engineering Objectives
- Maximise Fibrillation: Inducing internal and external micro-fibrils on the fibre surface to increase bonding area.
- Minimise Undesirable Cutting: Preserving fibre length to maintain tear resistance, unless specifically required for formation.
- Energy Optimisation: Reducing the specific energy consumption (kWh/t) while achieving target tensile index.
- Wear Resistance: Maintaining bar edge sharpness over prolonged operational periods under highly abrasive conditions.
The Five Performance Axes
In the engineering of flat refining plates, there is no single 'perfect' geometry. Every design alteration requires a fundamental compromise. The Performance Trade-off Matrix utilises a radar chart to visually map these inevitable compromises, allowing mill engineers to evaluate how different bar-and-groove configurations will behave under operational conditions. By mapping five critical performance variables, the matrix illustrates why the geometric design must be meticulously tailored to the specific raw material (hardwood versus softwood) and the target paper grade.
The chart evaluates plate geometry across the following operational parameters:
Hydraulic Capacity: This indicates the volume of pulp suspension that can effectively pass through the refiner grooves. Patterns with wider and deeper grooves present less resistance to the stock flow, thereby offering higher hydraulic capacity and preventing refiner bottlenecking.
Fibre Fibrillation: The primary goal of refining for most packaging and printing grades. Fibrillation refers to the gentle unravelling and 'brushing' of the fibre walls, which creates micro-fibrils. This vastly increases the surface area for hydrogen bonding without destroying the fibre's structural integrity.
Energy Efficiency: This axis represents how effectively the electrical energy drawn by the refiner motor is converted into useful mechanical work on the fibres, rather than being wasted as heat or turbulent hydraulic friction.
Wear Resistance: A measure of the plate's physical durability. Plates operate in a highly abrasive environment. Robust designs with thicker bars are intrinsically more resistant to rounding and clashing, thereby extending the operational lifespan between plate changes.
Fibre Cutting: The severe severing or shortening of cellulose fibres. While excessive cutting is generally detrimental to the paper's tear strength (the network's physical integrity), a controlled degree of cutting is sometimes necessary for specific formation requirements.
Performance Trade-off Matrix
Ultimately, the matrix visually reinforces that selecting a refiner plate is an exercise in balancing opposing forces. Engineers must pinpoint the exact geometric profile that maximises the desired fibre treatment whilst maintaining acceptable parameters for flow, energy consumption, and maintenance life.
Anatomy and Profile Geometry

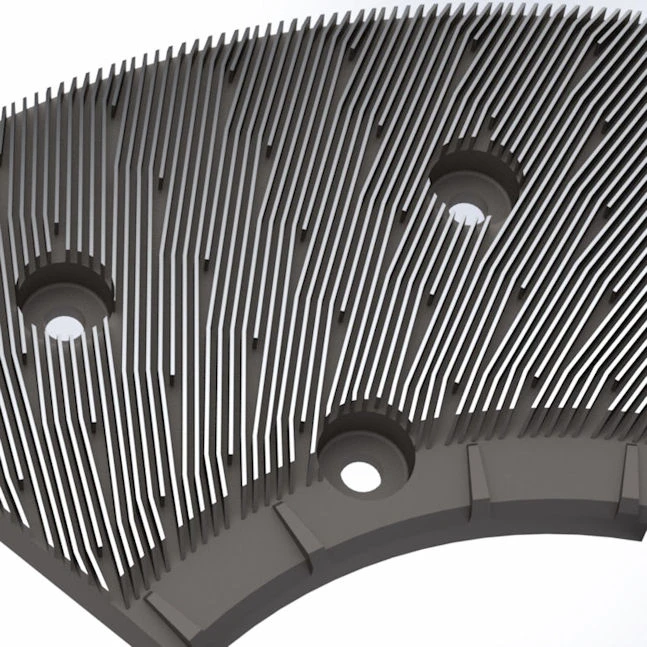

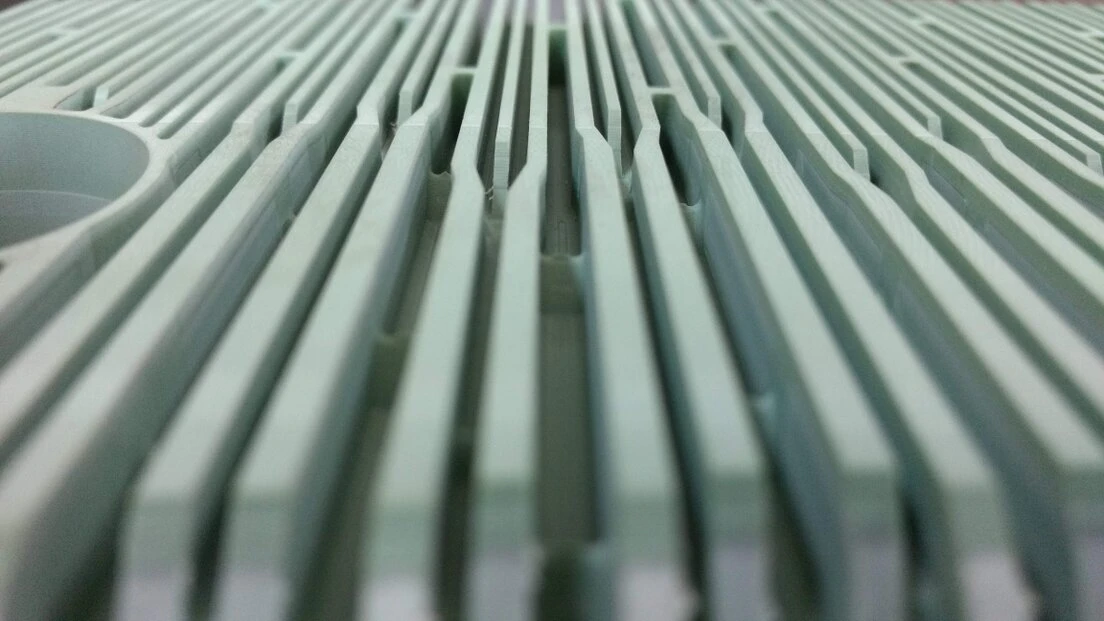

The surface of a refining plate consists of alternating bars and grooves. The precise width, angle, and depth of these elements determine the Specific Edge Load (SEL)—the intensity of the impacts upon the fibres.
Hardwood fibres (short and thin) require narrow bars and fine grooves to ensure adequate fibrillation without excessive cutting.
Softwood fibres (long and robust) require wider, stronger bars to withstand higher refining intensities.
Interactive Pattern Visualiser
Bar Width
--
Groove Width
--
Edge Length (CEL)
--
Primary Effect
--
Metallurgy & Materials
Alloy selection for wear resistance and prolonged operational efficiency.
The environment within a disc refiner is exceptionally aggressive, characterised by high hydraulic pressures, abrasive contaminants (sand, grit), and corrosive chemical environments. The choice of metallurgical alloy dictates the plate's lifespan and its ability to maintain a sharp leading edge. A rounded edge wastes energy as heat rather than performing useful mechanical work.
Concurrently, severe environmental and metallurgical constraints have been decisively addressed through the incredibly precise formulation of High Chromium White Cast Irons (HCWCI) and highly alloyed martensitic stainless steels. By carefully and scientifically balancing the critical Cr/C ratios and deploying trace elements like Vanadium and rare earths, metallurgists have created alloys capable of withstanding the severe, highly destructive erosion-corrosion synergism of acidic pulp slurries while resisting three-body abrasion.
